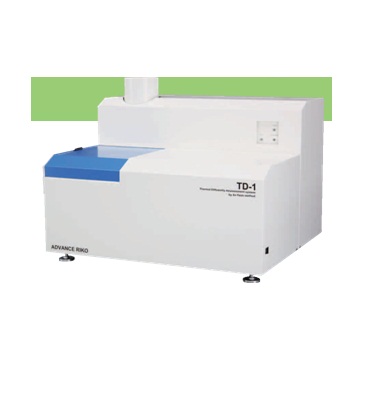

Thermal Property Measurement System : Thermal Diffusivity Measurement System by Xe flash method TD-1 series
R&D • Quality control of thermal conductive polymer materials.
The most suitable system for the evaluations of heat dissipation films etc. By using Xenon lamp, it enables to minimize the damage to the sample. Sample anisotropy can also easily measure by using the original attachment as an option.
Applications
• Thermal diffusivity measurements of polymer materials (Normal direction)
• The measurement of specific heat capacity and evaluations of thermal conductivity
• Available to make thermal diffusivity anisotropy evaluations (In-plane direction)
• Thermal diffusivity evaluations of multi-layers materials (Normal direction)
Features
• The most suitable system for thermal property evaluations of thermal conductive polymer materials
• Selectable the measurement atmosphere among air, vacuum, inert gas (RTA type is only available for air)
• Power saving (100 V – AC 15 A, excluding computer), space-saving with table-top type
• Controllable the temperature within the range from room temperature to 350°C(max.) (HTV type is only available for rising temperature measurements)
Specifications
|
Model |
TD-1 HTV |
TD-1 RTV |
TD-1 RTA |
|
|
Temperature range |
RT ～ 350 °C (max.) |
RT |
||
|
Sample size |
Standard |
φ10mm (Round samples, normal direction measurements) Sample thickness 25μm ～ 2mm (For polymid-based samples) |
||
|
Option |
Round sample holder (Normal direction) φ 12.7, φ 15, φ 20 mm Square sample holder (Normal direction) □ 10, 12.7 mm In-plane direction holder (In-plane direction) φ 20 mm |
|||
|
Number of sample per a measurement |
4 pieces |
1 pieces |
||
|
Atmosphere |
Air, Vacuum, Inert gas |
Air |
||
