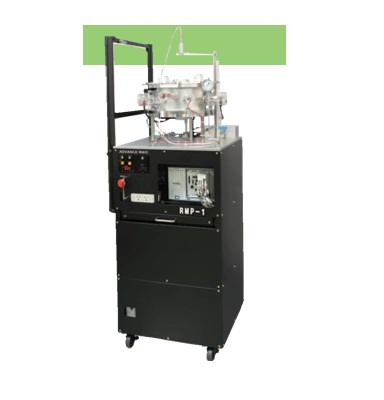

Thermal Property Measurement System : Rapid Multi Property Measurement System RMP-1
Heating up to 3000K within one second!
This system can measure thermophysical properties by applying current directly to a sample to heat up to a higher temperature within one second.
Applications
• Carbon materials, Metal materials and Space development etc.
Features
• Capable of heating up quickly to a higher temperature of more than 2000°C by applying current directly to a sample
• More than two thermophysical properties can be measured simultaneously
• Temperature controllability: within 1% (at 2800°C)
• Easy installation with power supply 100V/15A and no need of cooling mechanism like cooling water
Specifications
|
Temperature range |
700 ～ 2800 °C |
|
Max. heating rate |
3000 °C/s |
|
Atmosphere |
Vacuum |
|
Sample size |
φ 3 × L 100 (mm) (Negotiable) |
|
Measurement property |
Electrical resistivity, Specific heat capacity, Hemispherical total emissivity Option: Thermal expansion rate, Thermal diffusivity |
