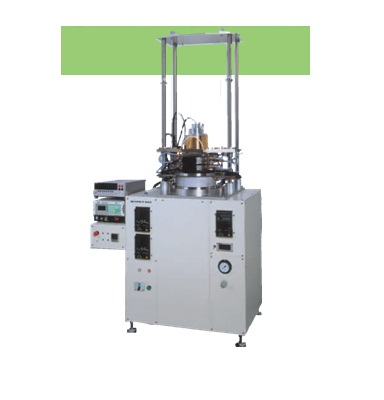

Thermal Property Measurement System : Power Generation Efficiency Characteristics Evaluation System PEM-2
Characteristics evaluation for thermoelectric power generation modules
This system is designed to measure thermoelectric conversion efficiency η with calculating heat flow Q and maximum power generation P flowing through a module when providing temperature difference of max. 500°C
With a thermoelectric module.
Applications
Power generation efficiency measurement for thermoelectric power generation modules
Features
• A infrared Gold Image Furnace with excellent temperature controllability
• It enables to make full-automatic calculation of ηmax from current dependency of conversion efficiency with evaluating P max from current dependency of power generation amount by calculating heat flow with a computer
• Available to measure in air as an optional
Specifications
|
Measured value |
Conversion efficiency, Power generation amount, Heat flow |
|
Method |
One dimensional heat flow input method |
|
Module size |
□ 20, 30, 40 × t 5 ～ 30 (mm) |
|
Heating Surface Temp. |
800 °C (max.) |
|
Contact Surface Pressure |
2 MPa (in □ 30 mm) |
|
Atmosphere |
Inert gas |
