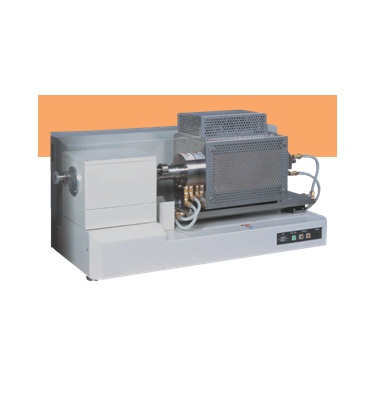

Thermal Analysis System : Thermodilatometer DL-9000 / DLY-9000 series
Dedicated thermal expansion measurement system for bulk materials
Dedicated linear expansion and contraction measurement system for various solid samples
Features
• Easy operation due to spring balance load setting
• Simple design allows an easy exchange of sample holders
• DLY model can handle a sample with the maximum size of φ20 x L100mm
Applications
• Quality management, research and development of metallic materials and low expansion alloys (DLY model)
• Thermal expansion measurement before/after the glass transition point of glass materials
• Quality management of semiconductor packaging materials
• Quality management of ceramic materials and carbon materials
• Sintered behaviour analysis of ceramics etc.
• Expansion measurement of heterogeneous materials (cement etc.)
Specifications
|
Model |
DL-9200 |
DL-9400 |
DL-9500 |
DL-9600 |
DL-9700 |
DL-9800 |
DLY-9200 |
DLY-9400 |
DLY-9500 |
DLY-9600 |
|
Temperature range |
−170 ～ 300 °C |
RT ～ 1000 °C |
RT ～ 1500 °C |
RT ～ 1100 °C |
RT ～ 1700 °C |
RT ～ 1650 °C |
−170 ～ 300 °C |
RT ～ 1000 °C |
RT ～ 1500 °C |
RT ～ 1100 °C |
|
Sample size |
φ 3 ～ 6 × L 10 ～ 20 (mm) (standard 15 mm) |
φ 8 ～ 10 × L 35 ～ 50 (mm) (standard 50 mm) |
||||||||
|
Measurement range |
Displacement ± 2500 μm |
|||||||||
|
Atmosphere |
Air, Inert gas |
|||||||||
